Suitable for
- LEAD ACID REPLACEMENT
- GOLF CART
- ELECTRIC LAWN MOWER
- OFF-GRID SYSTEMS

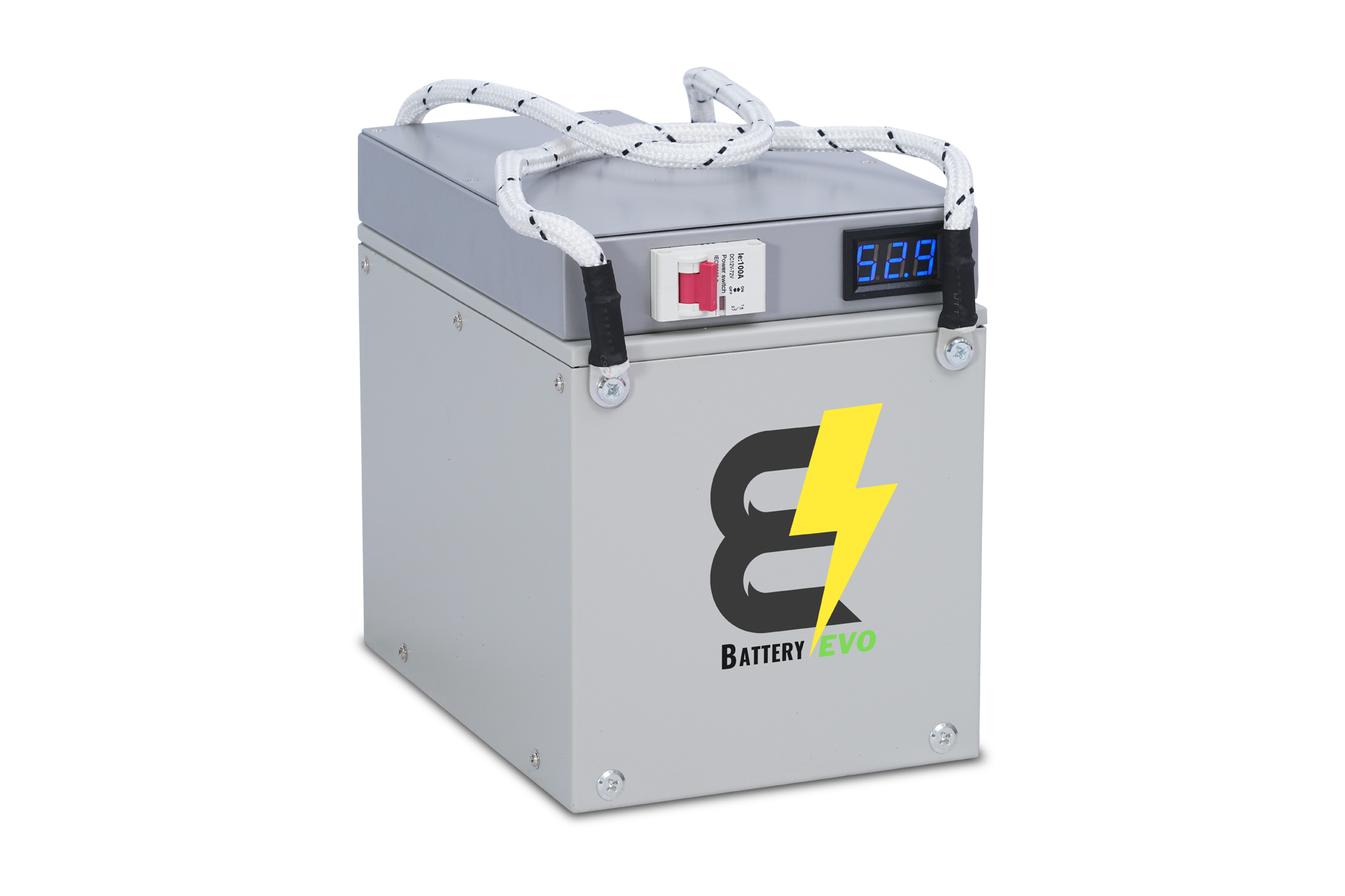

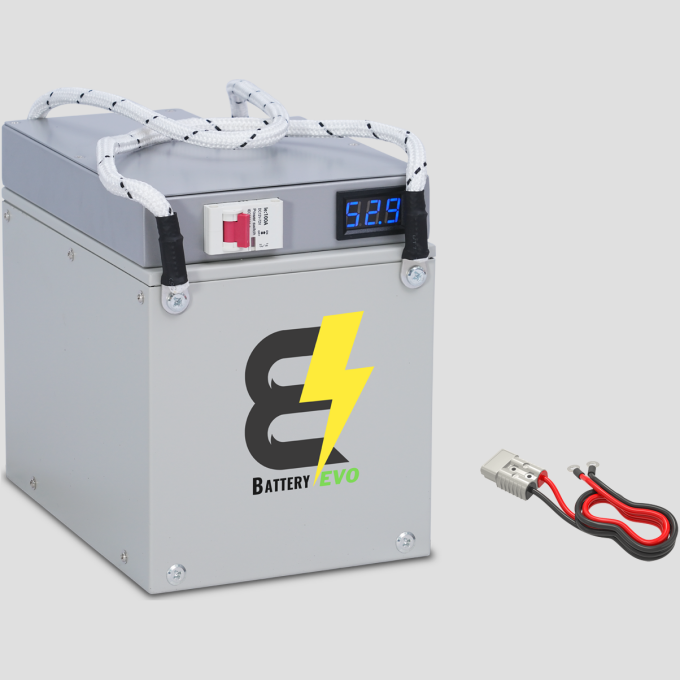

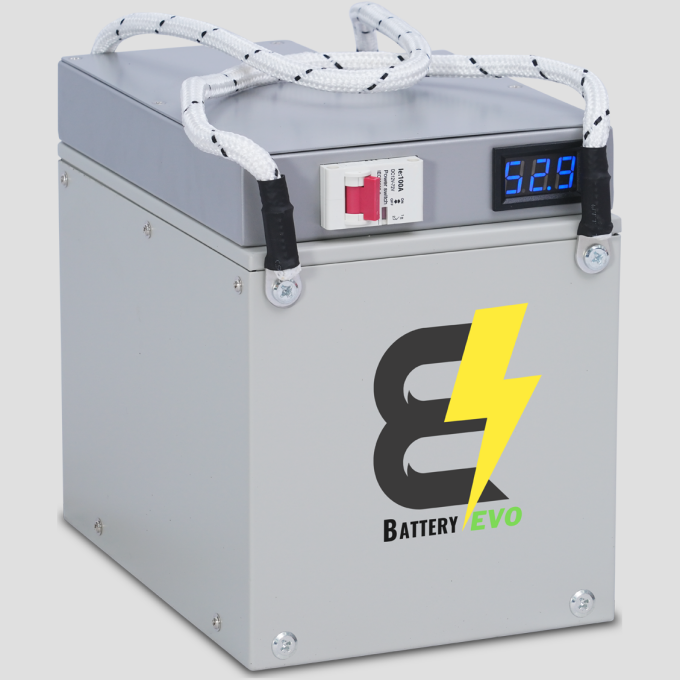

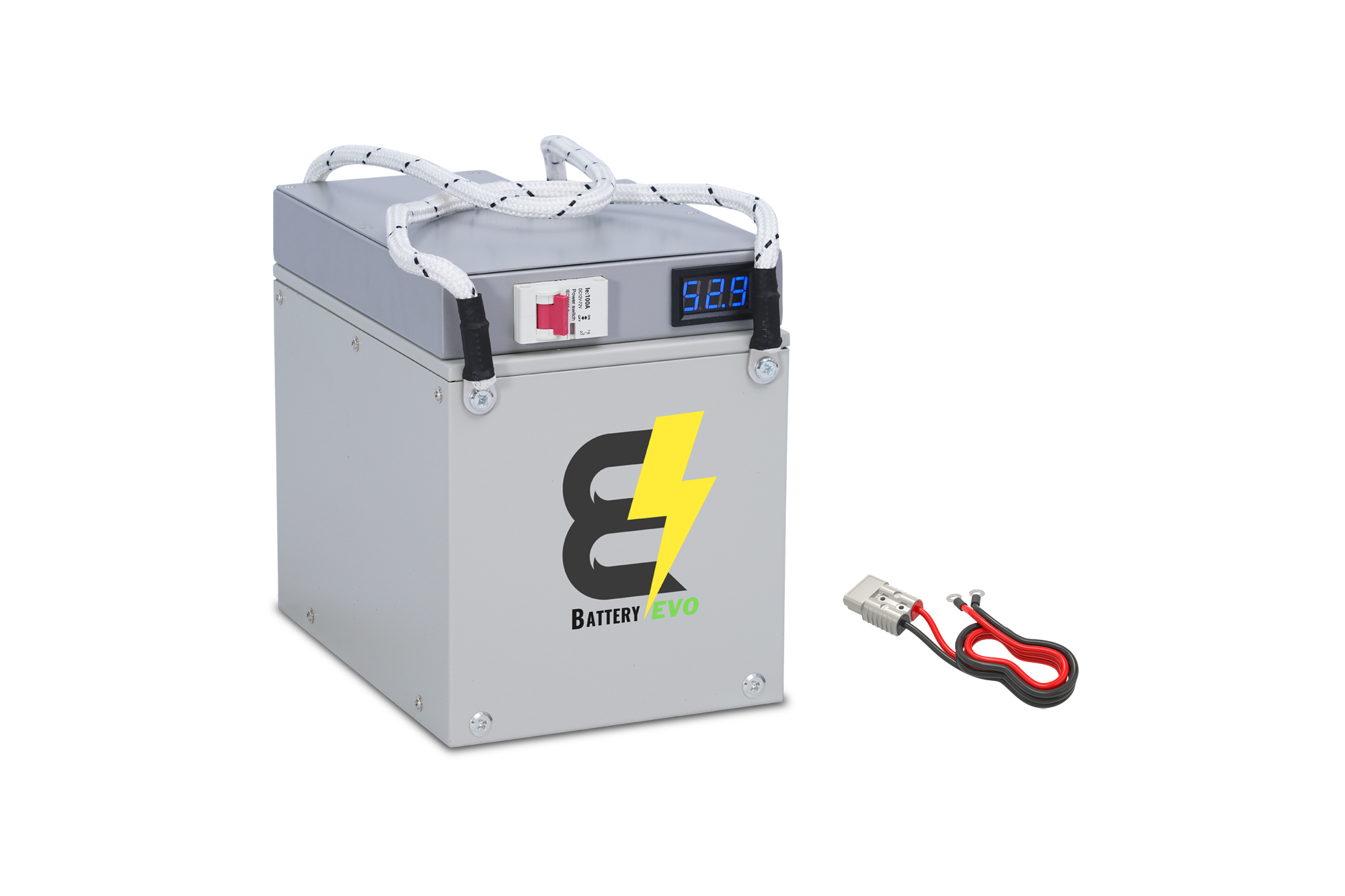

The BatteryEVO 48V 1.5 kWh LiFePO4 EAGLE Battery
Carefully designed to take your golf cart experience to new levels.
The EAGLE is our premier golf cart solution, and its popularity is well-deserved. Providing reliable power to your 48V carts, the EAGLE offers increased range, improved acceleration, and longer lifespans whether you choose 2, 3, or 4 batteries. This advancement leaves old lead-acid batteries behind.
Moreover, the EAGLE is cleverly designed to replace a standard T-105 lead-acid battery, saving you from modifying your battery tray. You can significantly reduce weight thanks to the powerful energy density of lithium. Embrace the future by getting a set of EAGLE batteries today to not only improve your cart but also enhance your overall game.
Please Note: A single EAGLE battery isn’t enough to power a golf cart on its own. The individual EAGLE battery is meant for various power upgrades offered by the EAGLE Kit. To find the right battery kit, compare the Continuous Power specifications of the EAGLE kits with your motor and controller. Using the battery beyond the specified limits will void the warranty.
Specification
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LFP |
| kWh Capacity: | 1.5 kWh |
| Ah Capacity: | 30Ah |
| Charging Voltage: | 55.2V – 58.4V |
| Max Charge Voltage: | 58.8V |
| Operating Voltage Range: | 44.8V – 58.4V |
| Suggested Low Voltage Cutoff: | 44.8V – 50.8V |
| Cell Configuration: | 16S1P |
| Max Continuous Discharge Current: | 80 A |
| Max Continuous Power: | 4000 W |
| Max Discharge Peak Current: | 160 A (Over 6 seconds) |
| Max Charge Current: | 30 A |
| Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 38lbs (17.2kg) |

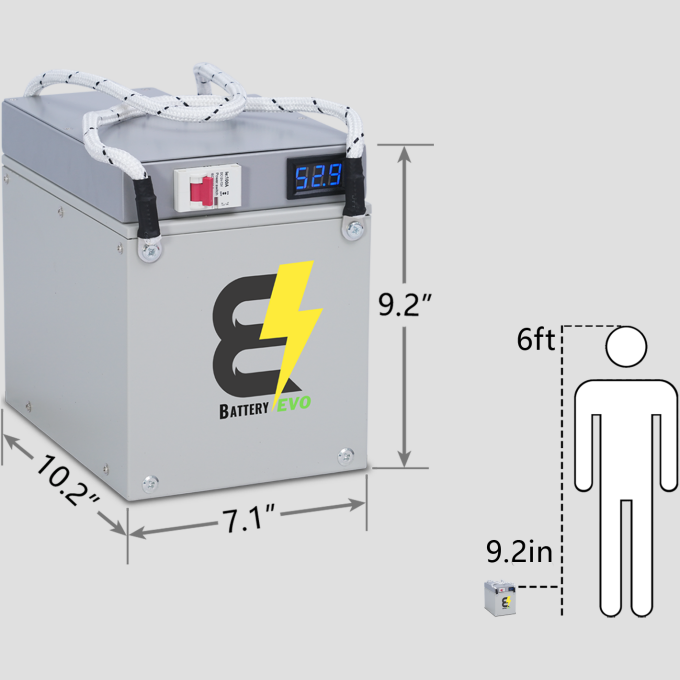

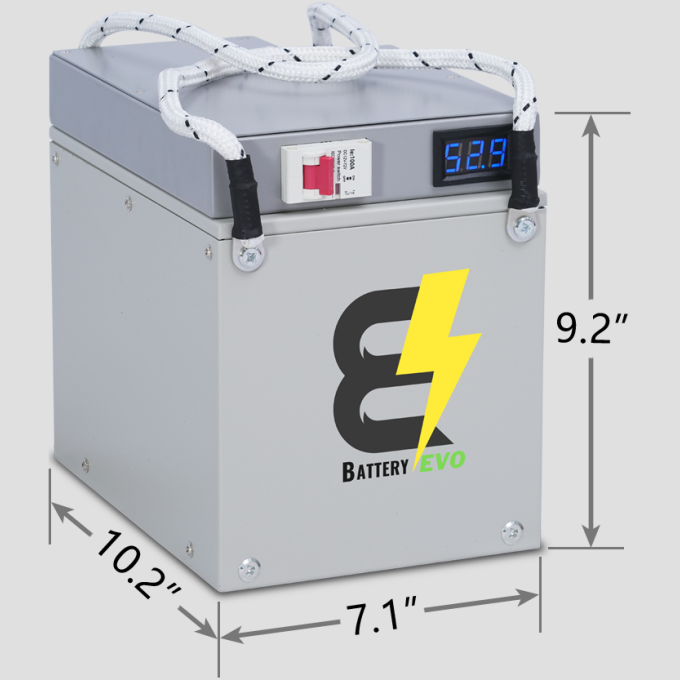

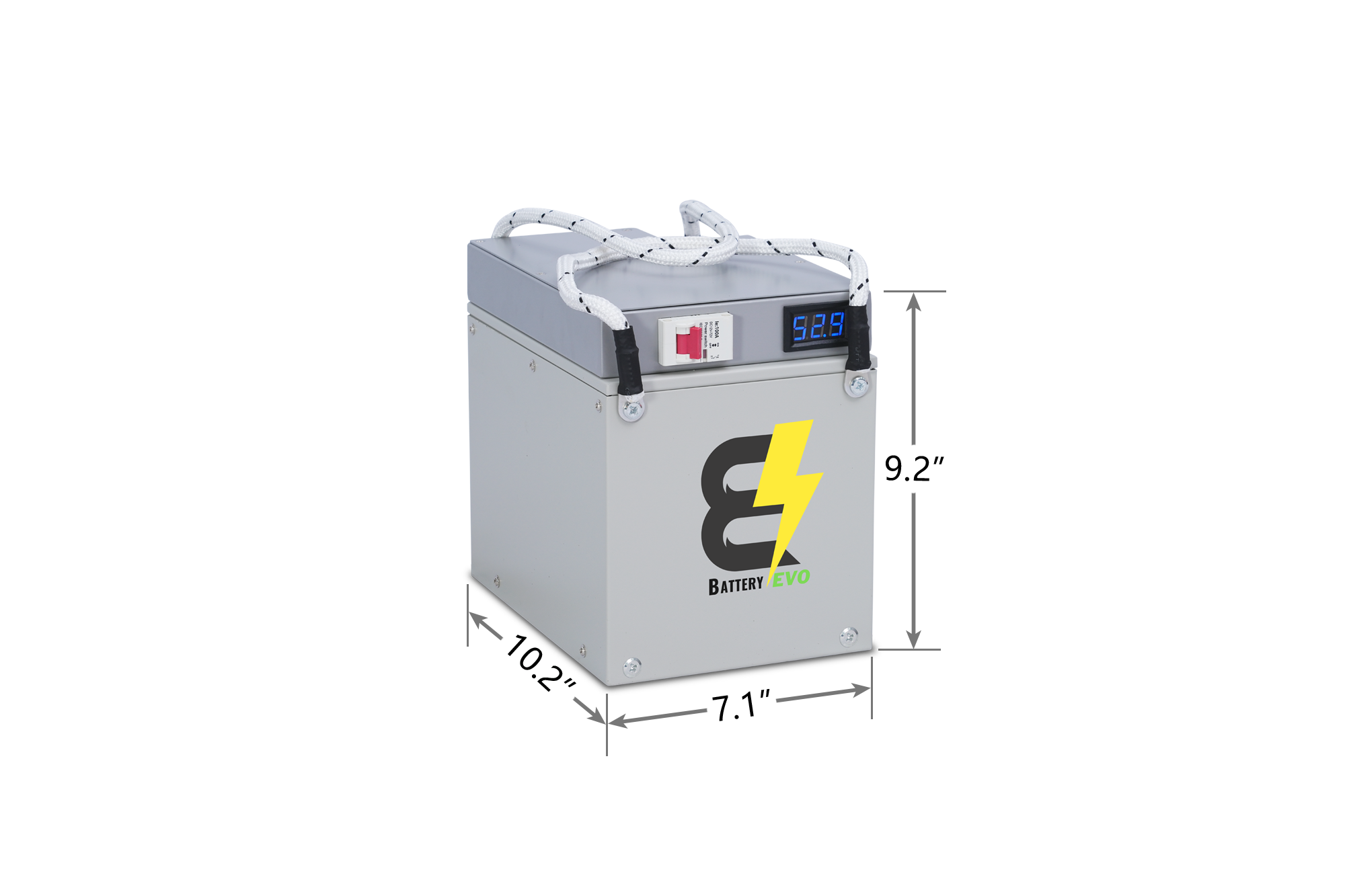

| Depth: | 10.2in (259.1mm) |
| Width: | 7.1in (180.3mm) |

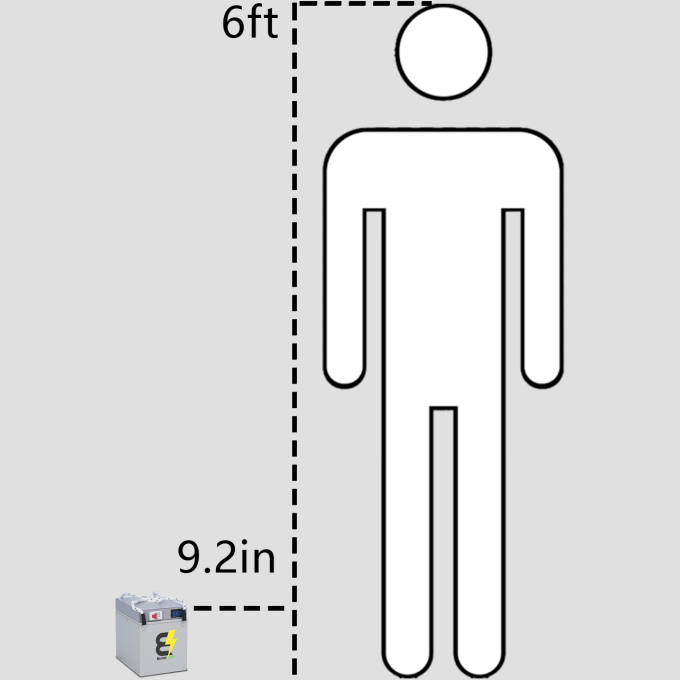

| Height: | 9.2in (233.7mm) |
| Safety Features: | Breaker (100A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: | Up To (8) Parallel |
Resources & Download
| Battery Spec Sheet: | View |
