Suitable for
- LEAD ACID REPLACEMENT
- GOLF CART
- ELECTRIC LAWN MOWER
- OFF-GRID SYSTEMS

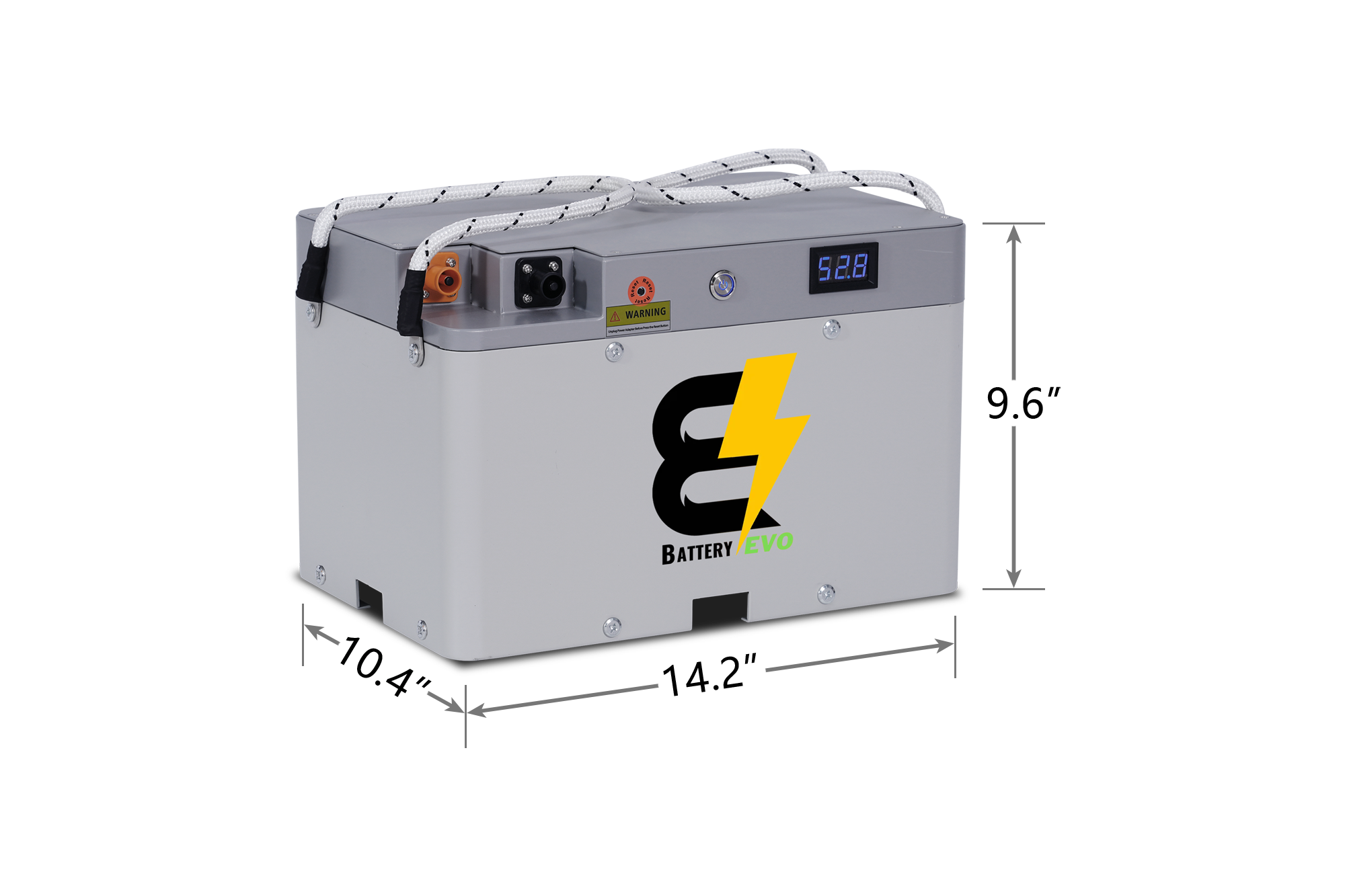

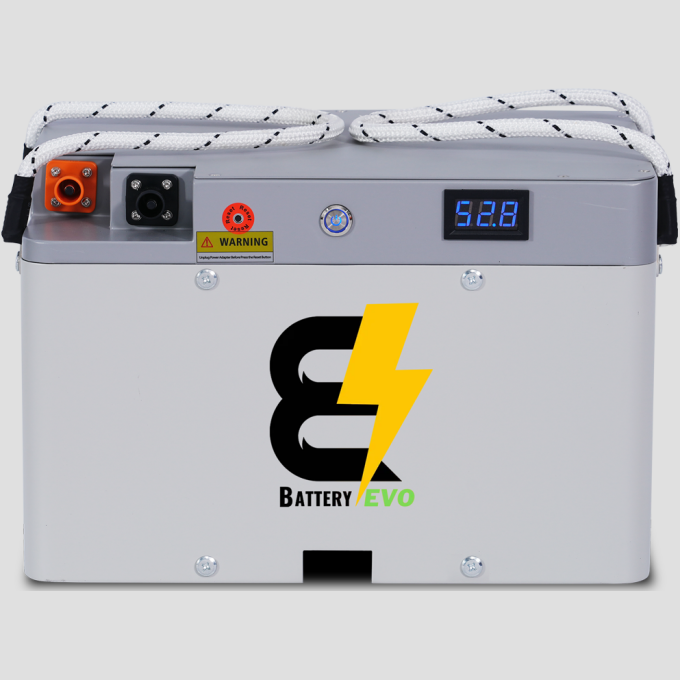

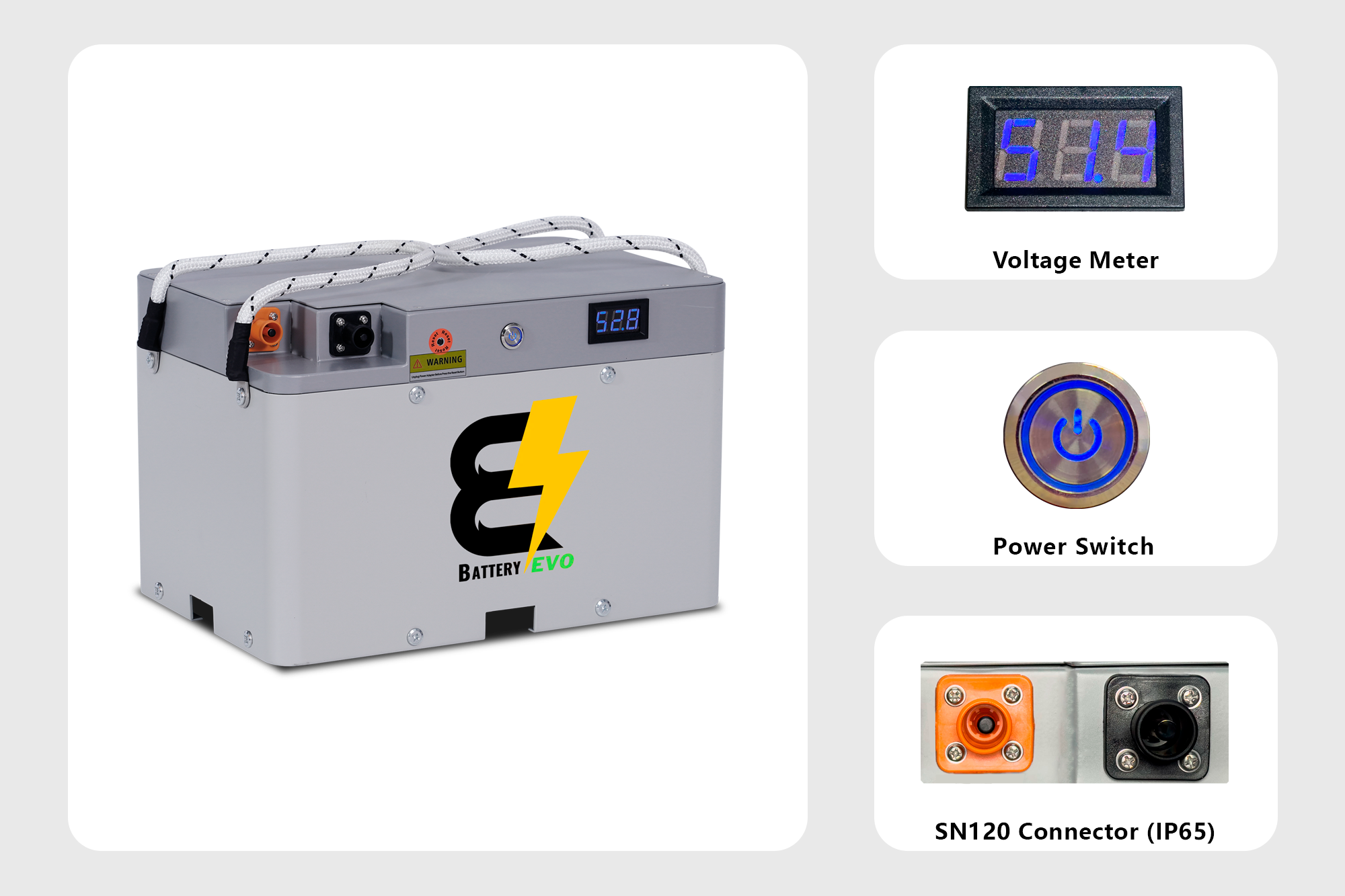

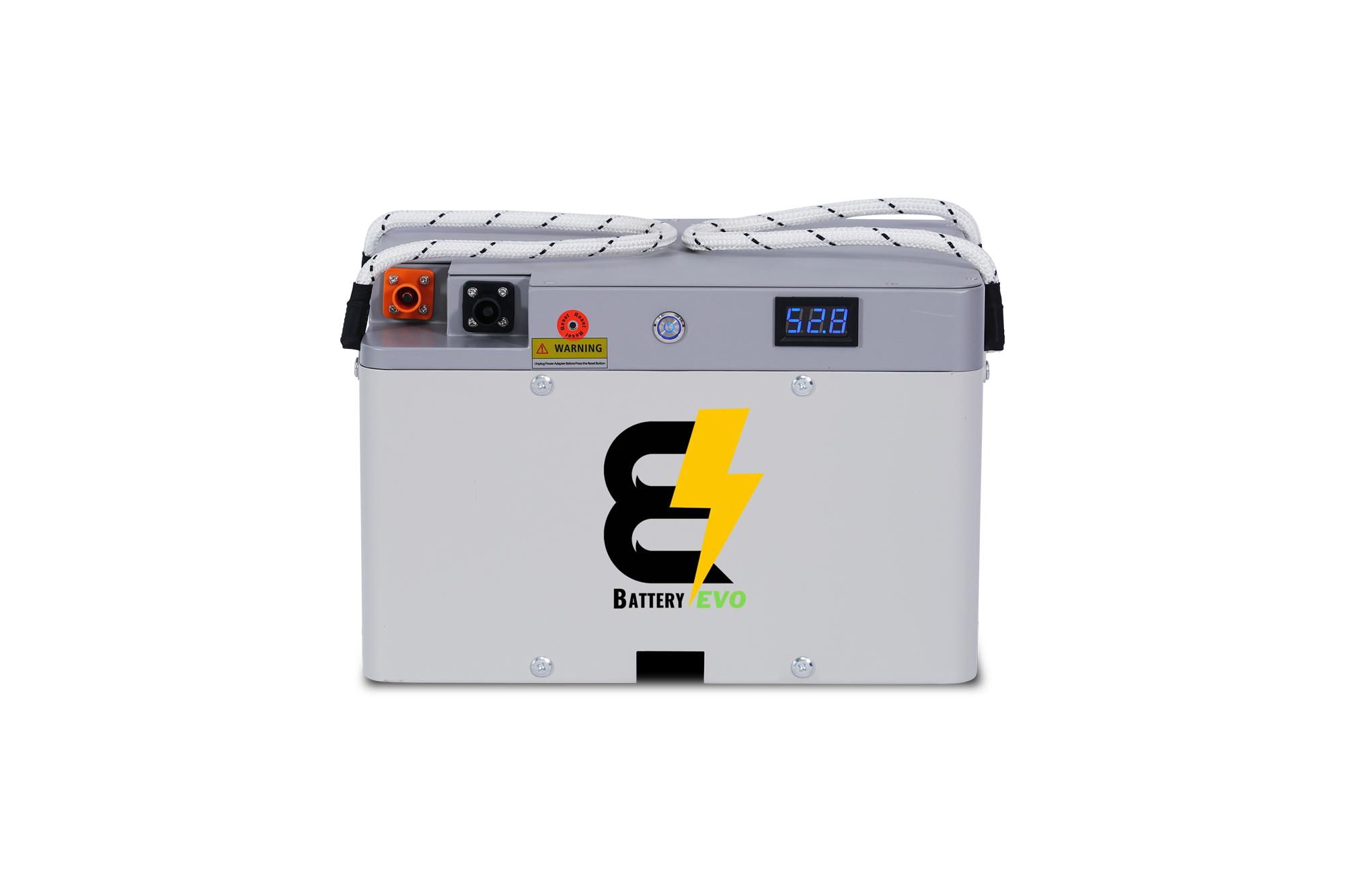

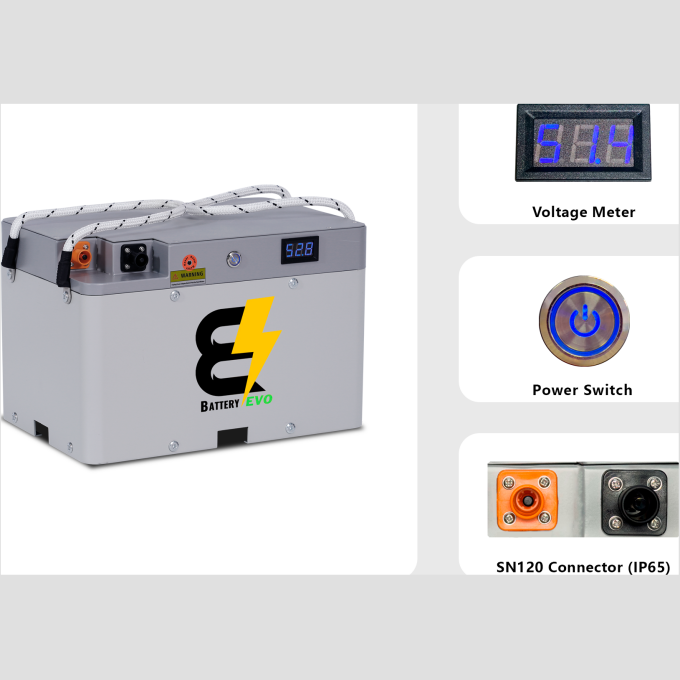

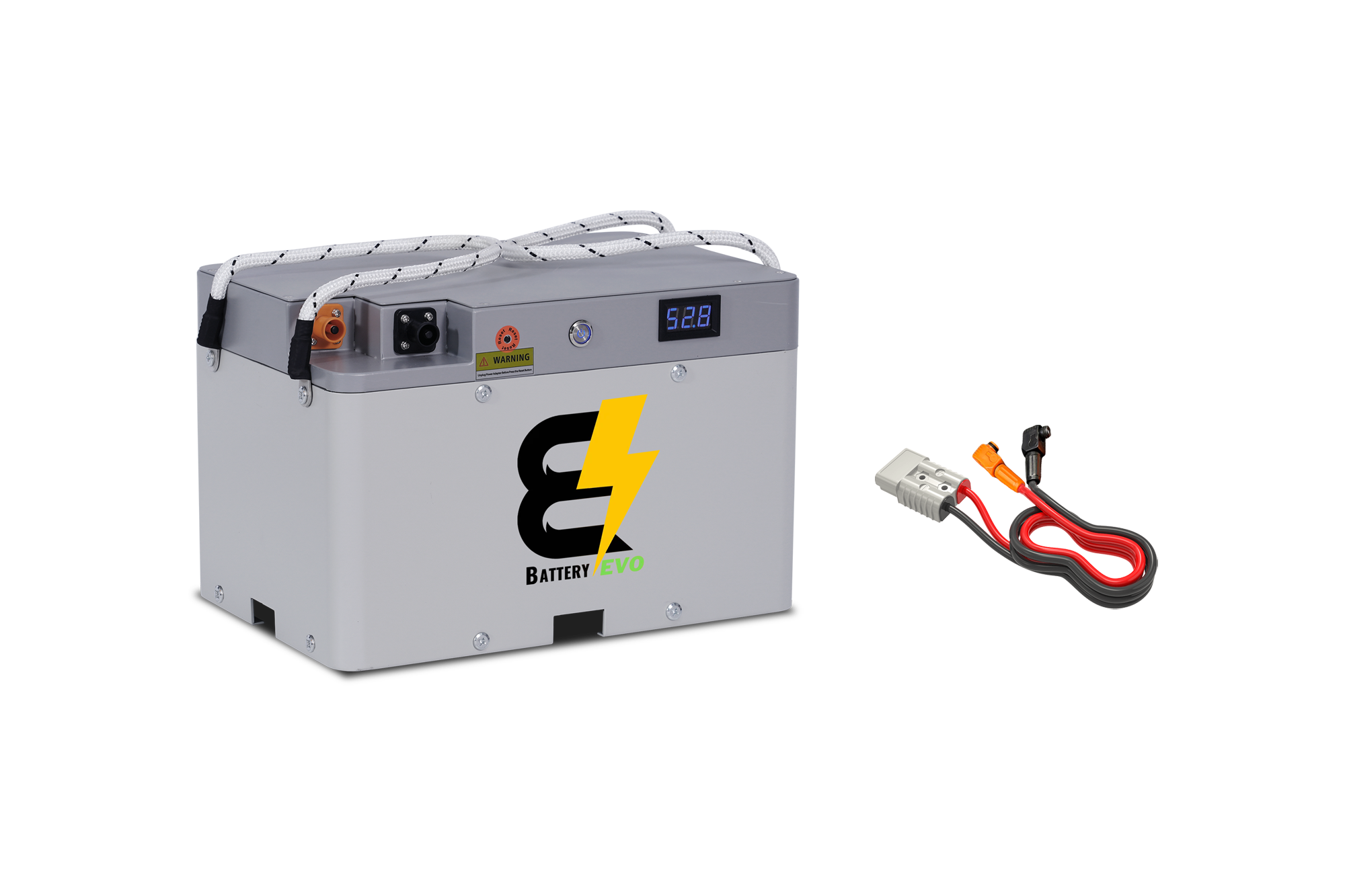

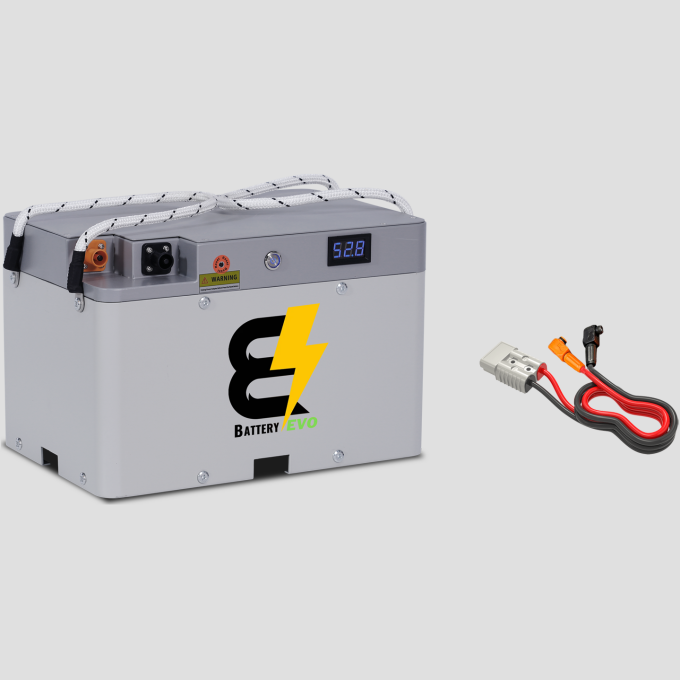

The BatteryEVO 48V 3.3 kwh LiFePO4 FALCON Elite Battery
A powerful upgrade designed for your high-performance 48V golf and utility carts.
The idea for the FALCON Elite comes from our impressive 72V FALCON model, bringing the strength of the FALCON into a 48 volt setup. Equipped with Tier 1 LFP cells, our advanced BMS system, and a 300A Safety Fuse, the FALCON Elite is a trustworthy, safe, and energy efficient lithium upgrade for your carts. Plus, the FALCON Elite has built-in cutouts at the base, so you don’t have to worry about plastic dividers in your battery tray.
Opting for the FALCON Elite for your cart means gaining higher speeds, better performance, and a longer range, all while saving space and weight. Take your golf cart experience to the next level with the 48V FALCON Elite!
Please Note: A single 48V FALCON Elite is meant to power a standard stock golf cart. Golf carts with high-power motors or controllers might require multiple batteries. To find the right battery kit for your setup, compare the Continuous Power specifications of the FALCON Elite or FALCON Elite kit with your motor and controller. Using the battery beyond its specifications will void the warranty.
System Voltage: | 48V |
Nominal Voltage: | 51.2V |
Chemistry: | LFP |
kWh Capacity: | 3.3kWh |
Ah Capacity: | 67Ah |
Charging Voltage: | 55.2V – 58.4V |
Max Charge Voltage: | 58.8V |
Operating Voltage Range: | 44.8V – 58.4V |
Suggested Low Voltage Cutoff: | 44.8V – 50.8V |
Cell Configuration: | 16S1P |
Max Continuous Discharge Current: | 80A |
Max Continuous Power: | 4000W |
Max Discharge Peak Current: | 160A (5 seconds) |
Max Charge Current: | 60A |
Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
Discharge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
Weight: | 68lbs (30.8kg) |

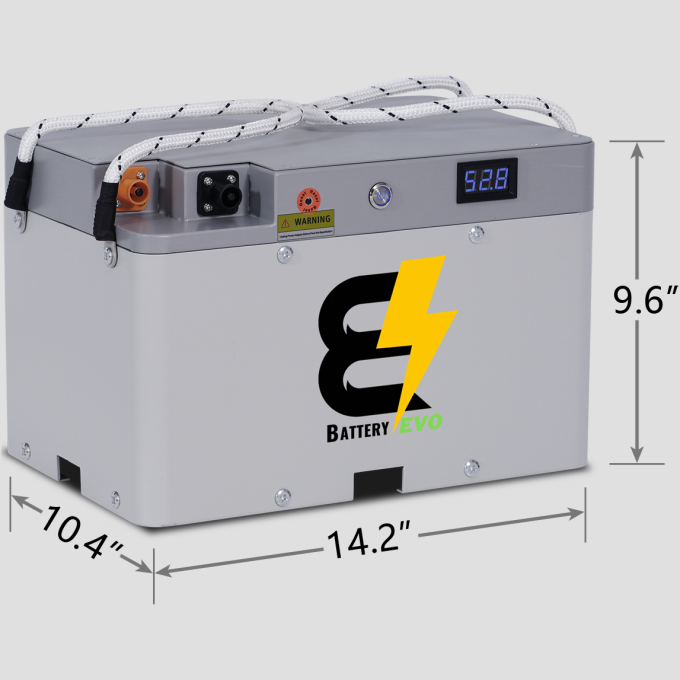

Depth: | 10.4in (264.2mm) |
Width: | 14.2in (360.68mm) |

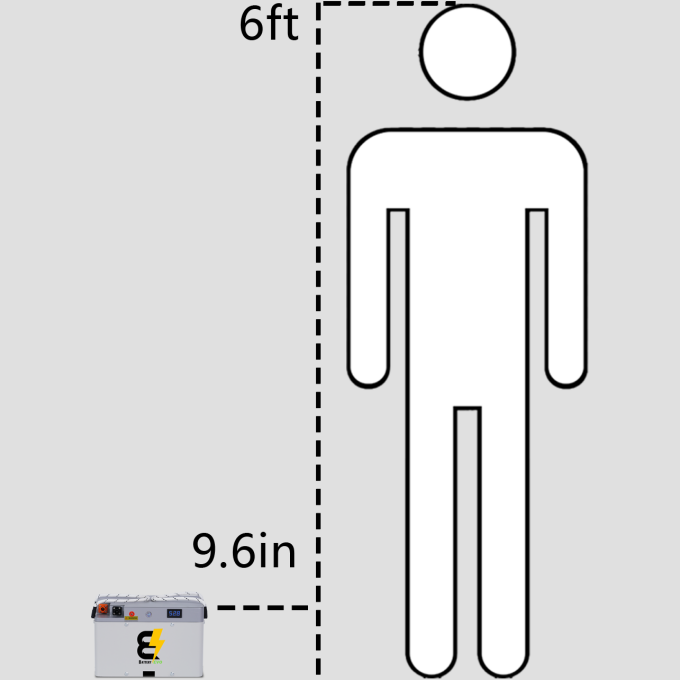

Height: | 9.6in (243.8mm) |
Safety Features: | Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
Max Connections: | Up To (8) Parallel |
Battery Spec Sheet: | View |
