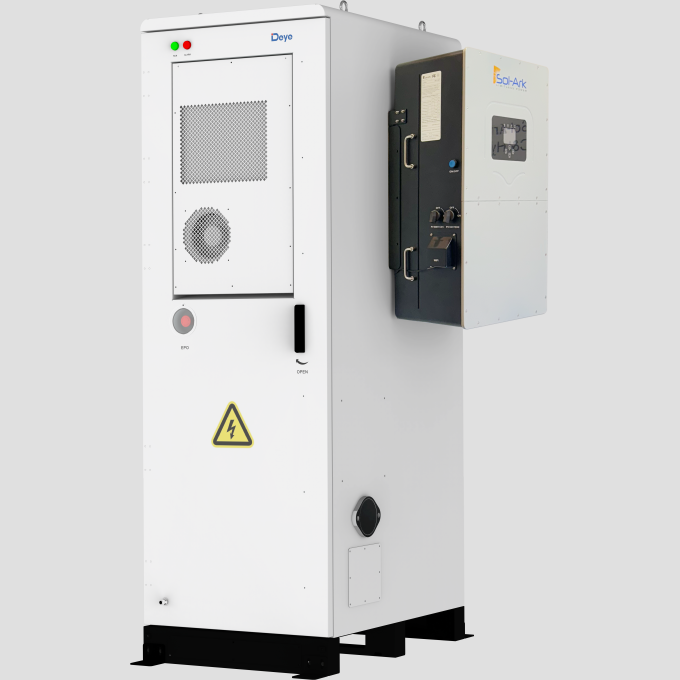

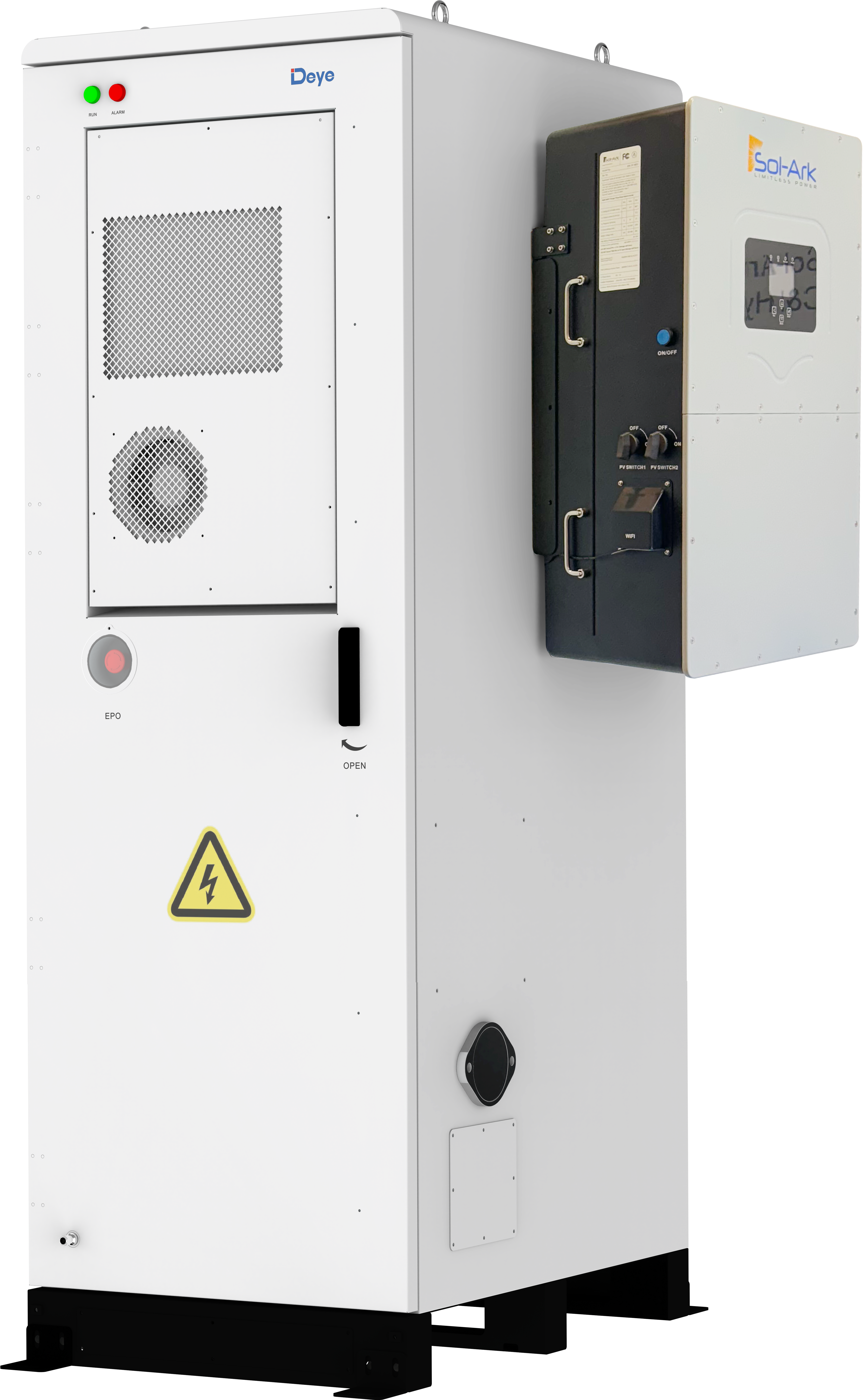

Sol-Ark 60K Inverter With One Deye 60 kWh High Voltage Battery

Original price was: $71,240.00.Current price is: $56,992.00.

Key Features

LFP battery chemistry for high safety and long cycle life
Modular design with 5.12 kWh battery modules
Expandable capacity up to 360 kWh
Integrated battery management system (BMS) for monitoring and control
EMS and hybrid inverter technology for flexible operation
Aerosol fire suppression system for enhanced safety
Combustible gas, smoke, and heat detection with active ventilation
IP55-rated enclosure for indoor and outdoor installation
10-year warranty for peace of mind

This system is designed for large commercial and industrial businesses, featuring a native 277/480V 3-phase output that simplifies installation and reduces complexity. It supports both AC and DC coupling for seamless integration with existing or new solar PV systems. The modular and scalable design allows easy expansion from 40kWh to 9.6 MWh, with up to 10 inverters in parallel and 16 batteries per inverter to meet growing energy demands. It also ensures reliable backup power with a rapid 5ms transfer during grid outages and includes a 200A grid pass-through for straightforward grid-tied and backup applications.

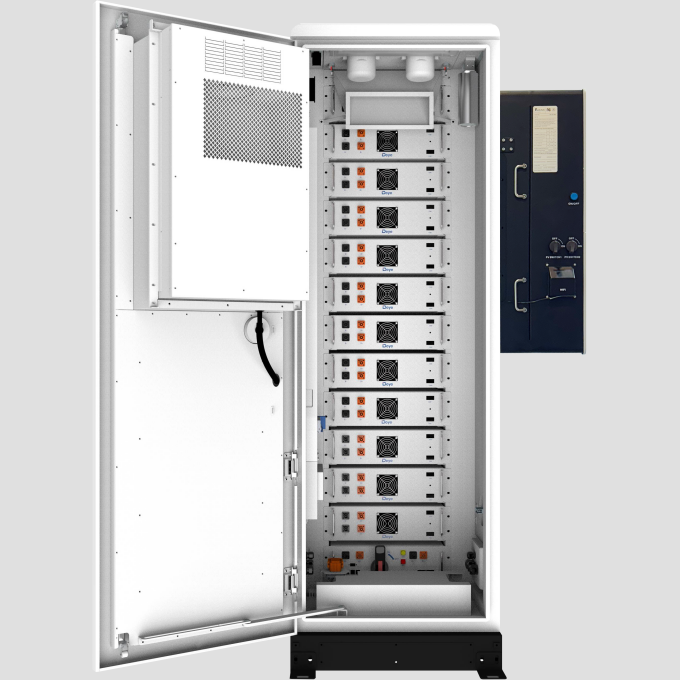

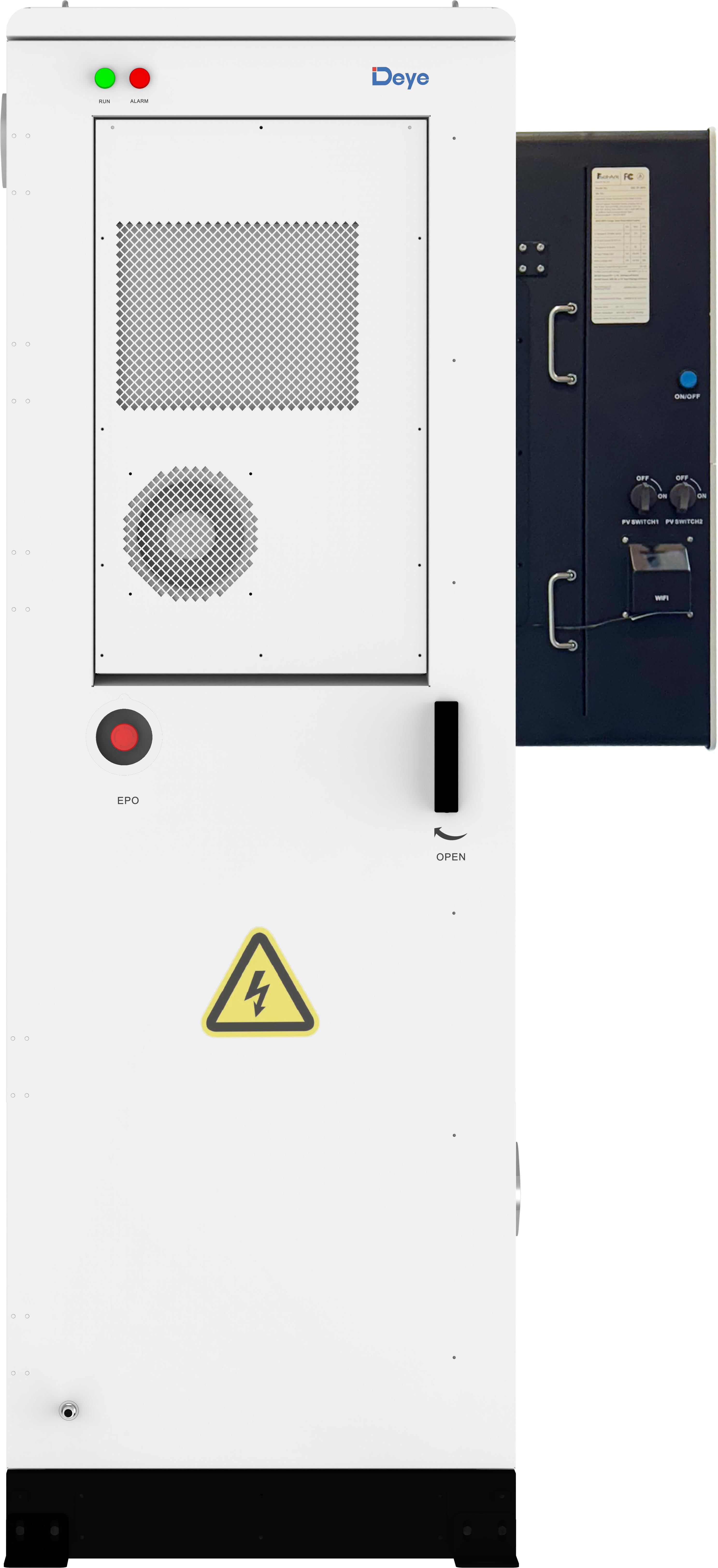

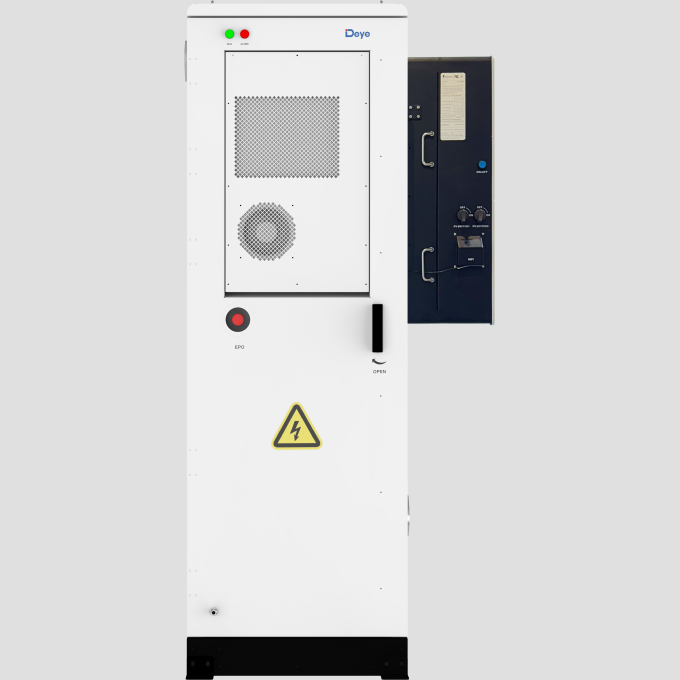

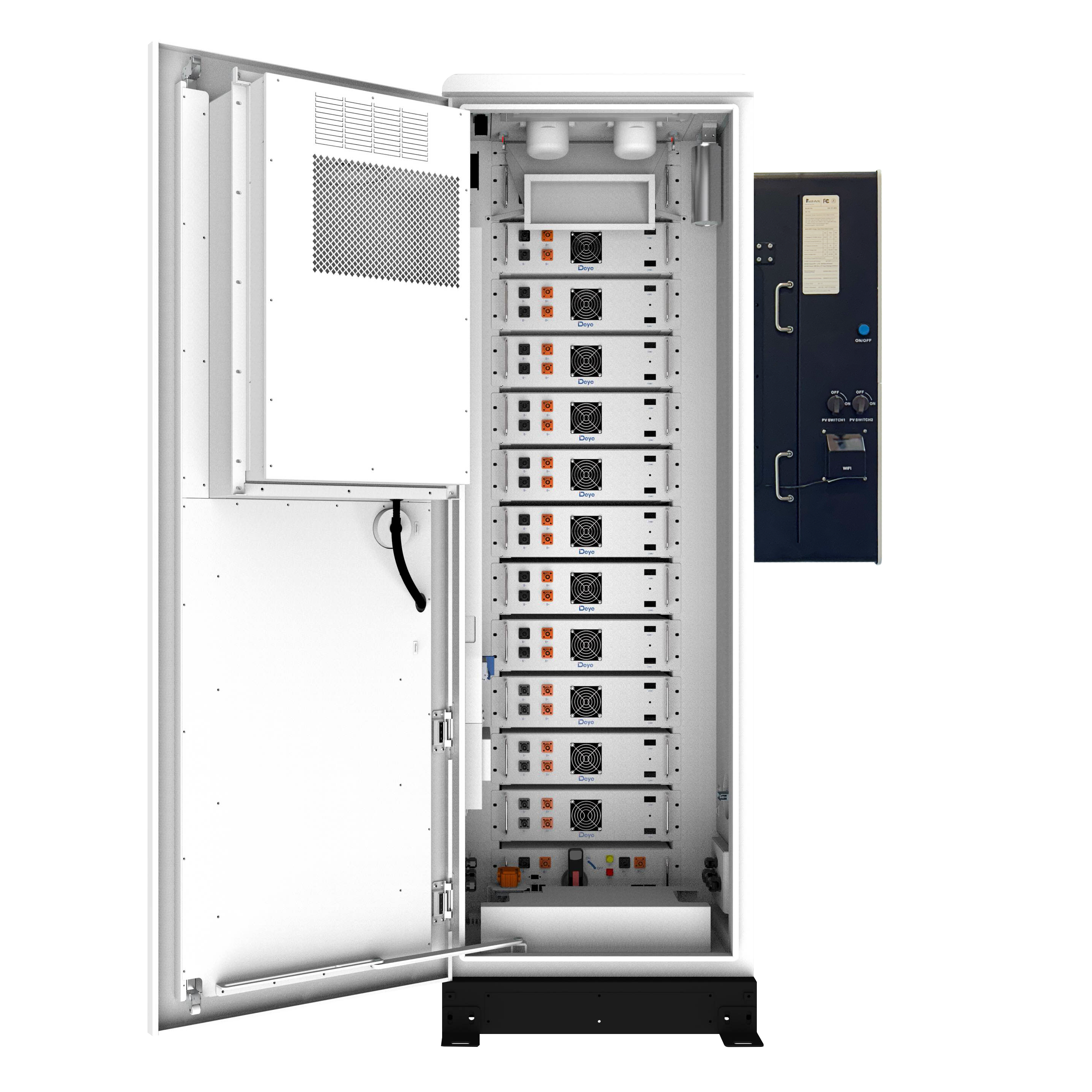

Deye’s GE-FL60 and GE-FH60 are advanced lithium iron phosphate (LFP) battery energy storage systems designed for high-performance energy storage applications. With robust safety features, integrated battery management, and expandable capacity, these systems provide reliable and efficient energy storage solutions.

Both systems support working temperatures of 0-55°C for charging and -20-55°C for discharging. The modular architecture allows for system expansion up to 360 kWh to meet larger energy storage requirements.

With over 6000 cycles at 70% capacity retention, the GE-FL60 and GE-FH60 provide long-lasting performance in demanding applications. The integrated safety features, including multi-level electrical protection, fire suppression, and environmental monitoring, ensure secure operation.

Deye’s GE-FL60 and GE-FH60 battery storage systems deliver a comprehensive energy storage solution that combines high performance, expandability, and rigorous safety in a compact floor-mounted package. Backed by a 10-year warranty, these systems provide reliable energy storage for a wide range of stationary applications.

Specification

Cell Chemistry:	LiFePO4
Module Energy (kWh):	5.12
Module Nominal Voltage (V):	51.2
Module Capacity (Ah):	100
Battery Module Qty In Series:	6 (Max)
System Nominal Voltage (V):	240~350
System Energy (kWh):	61.44
System Usable Energy (kWh):	91%
System Usable Energy (kWh):	55.29
Charge/Discharge Current(A):	Recommend: 100 Nominal: 100 Peak Discharge (2 mins, 25℃): 125
Working Temperature (°C):	Charge: 0~55/Discharge: -20~55
Status Indicator:	Yellow: Battery High Voltage Power On Red: Battery System Alarm
Communication Port:	CAN2.0/ RS485
Humidity:	5%~85%RH
Altitude:	≤2000m
IP Rating of Enclosure:	IP55
Dimension (W/D/H,mm):	735x1045x2235
Weight Approximate (kg)	1015
Installation Location	Floor-Mounted
Storage Temperature (°C)	0~35
Recommend Depth of Discharge	90%
Cycle Life	≥6000(@25℃±2℃,0.5C/0.5C,70%EOL)
Certification	UL1973 /UL9540A/UN38.3
Warranty	10 years
