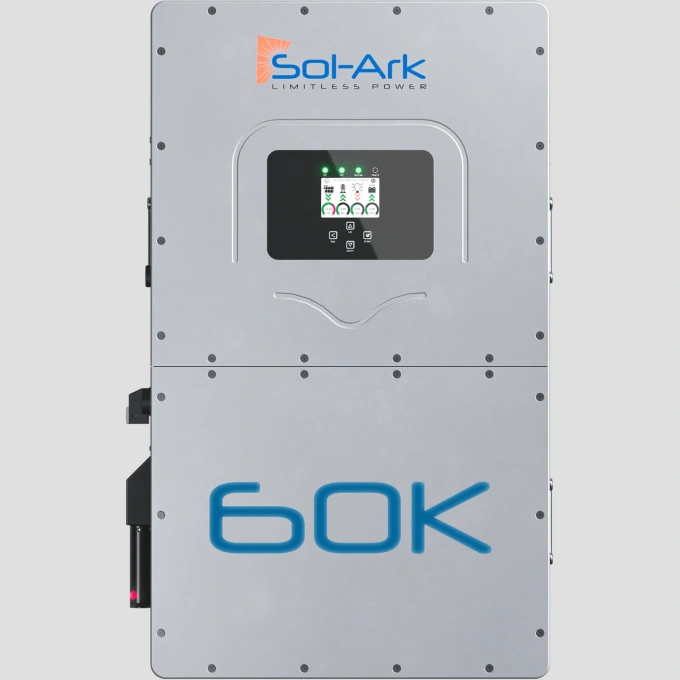

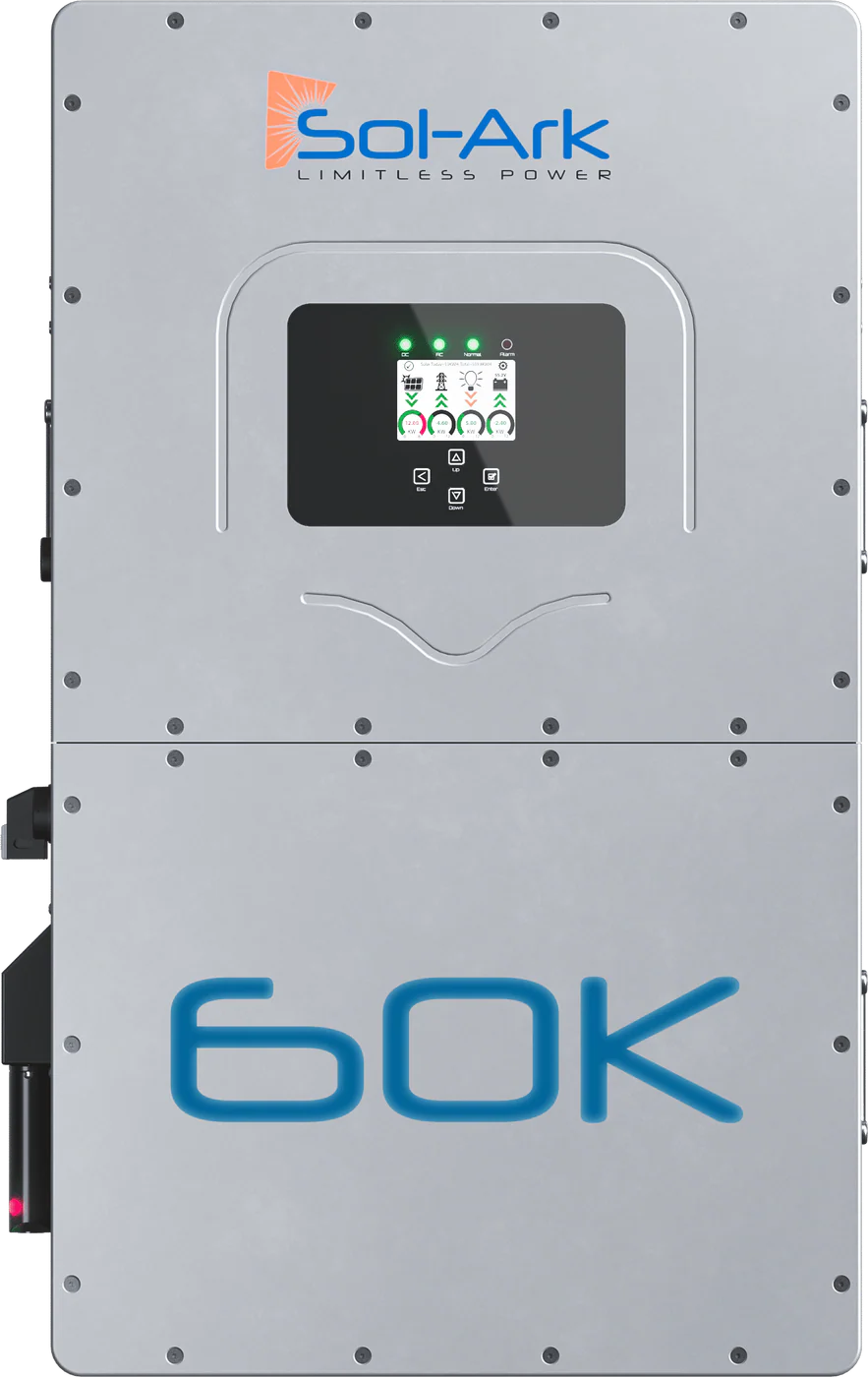

Sol-Ark 60K-3P-480V Commercial Hybrid Inverter

Original price was: $16,700.00.Current price is: $14,389.00.

-

Key Features:

  • Engineered for Large Commercial & Industrial Businesses: Native 277/480V 3 phase output simplifies installation and reduces complexity for larger commercial and industrial buildings.
  • AC & DC Coupling Capability: Supports both AC and DC coupling, enabling seamless integration with existing solar PV systems and new arrays that simplify commercial installations.
  • Modular & Scalable Energy: Modular and flexible design allowing for easy expansion from 40kWh to 9.6 MWh to accommodate growing energy needs; up to 10 inverters in parallel + 16 batteries per inverter.
  • Seamless Backup Power: Provides reliable blazing fast 5ms transfer and backup power during grid outages, ensuring business continuity; 200A grid pass-through for simple grid-tied and backup applications.
Want a discount? Become a member by purchasing Silver Partner or Bronze Partner!

    Sol-Ark® 60K-3P-480V Commercial Hybrid Inverter

    Reduce Demand Charges with Peak Shaving

    The Sol-Ark® 60K-3P-480V commercial hybrid inverter is a powerful and versatile commercial energy storage solution specifically designed for light commercial and industrial businesses. It helps commercial building owners reduce high demand charges by optimizing solar energy usage, shaving peak demand charges, and participating in grid services programs for additional revenue.

    Simplify and Lower Installation Cost

    Enable seamless integration, simplify installations, and lower installation cost with its AC and DC coupling capability to existing solar photovoltaic (PV) arrays or new arrays. The native 120/208V 3 phase output helps reduce installation complexity for most light commercial businesses. With its modular and flexible design, it allows businesses to easily expand solar power generation from 30kW up to 300kW to meet growing business energy needs and demands.

    Meet Sustainability Goals

    Enjoy seamless 5ms transfer and backup power during grid outages, ensuring business continuity. Not only will you meet critical corporate renewable energy goals to help drive sustainability efforts, but with MySol-Ark advanced controls and monitoring, your business can monitor in real-time for optimal system performance and fleet management. Standard 10-year warranty.



    Specification

    Solar – Input Power 78,000W

    Max allowed PV DC Capacity 78,000W
    MPPT voltage range 150-850V
    MPPT Starting Voltage 180V
    Max DC voltage 1000V
    Max DC Current per MPPT (Self Limiting) 36A
    Number of MPPT 4
    Max Solar Strings Per MPPT 2
    Max. AC Coupled Input 60,000 Watts

    AC Output Power 60kW On-Grid & Off-Grid

    Nominal AC Output Voltage 277V / 480V Three Phase
    Grid Frequency 50 / 60Hz
    Real Power, max continuous (3Φ) 60,000W
    Max. Output Current 72.3A
    Peak Apparent Power (10s, off-grid, 3Φ) 90,000VA
    Max. Grid Passthrough Current (10min) 200A
    Continuous Grid Passthrough Current 180A
    Frequency 60/50Hz
    Continuous AC Power with Grid or Generator 102,000W | 160A L-N (277V)
    CEC Efficiency 96.5% (Peak 97.5%)
    Idle Consumption Typical – No Load TBD
    Sell Back Power Modes Limited to Household/Fully Grid-Tied
    Design (DC to AC) Transformerless DC
    Response Time (Grid-Tied to Off-Grid) 5ms
    Power Factor +/- 0.8 – 1.0
    Parallel Stacking Up to 10 in parallel

    Battery (optional) Output Power 60,000W

    Type | Number of Inputs Li-Ion | 2 Inputs
    Nominal DC Input >600V
    Battery Capacity Range 50 — 9,900Ah
    Voltage Range 160V ~ 700V
    Continuous Battery Charging Output 100A (50A Per Input)
    Charge Controller Type CC/CV – BMS Controlled
    Grid to Battery Charging Efficiency 96.0%
    External Temperature Sensor Included
    Current Shunt for Accurate % SOC Included
    Automatic Generator Start (AGS) 2 Wire Start – Integrated
    BMS Communication CAN (Controller Area Network)

    General

    Dimensions (H x W x D) 35.2” x 20.8” x 11.6”
    Weight 172 lbs
    Enclosure IP65 / NEMA 3R
    Ambient Temperature -40~60°C, >45°C Derating
    Installation Style Wall-Mounted
    Wi-Fi & LAN Communication Included
    Standard Warranty (verified by HALT Testing) 10 years

    Protections & Certifications

    Electronics Certified Safety by SGS Labs to NEC & UL Specs – NEC 690.4B & NEC 705.4/6 pending
    Grid Sell Back — UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H pending
    PV DC Disconnect Switch — NEC 240.15 integrated
    Ground Fault Detection — NEC 690.5 integrated
    PV Rapid Shutdown Control — NEC 690.12 integrated
    PV Arc Fault Detection — NEC 690.11 integrated
    PV Input Lightning Protection integrated
    PV String Input Reverse Polarity Protection integrated
    AC Output Breakers – 200A integrated
    Surge Protection DC Type II / AC Type III

    Resources & Download

    Sol-Ark Inverter Spec Sheet: View
    Sol-Ark Inverter User Manual: View
